14310816402000 - SVK Elektronik, s.r.o.

Katalogové číslo: 14310816402000

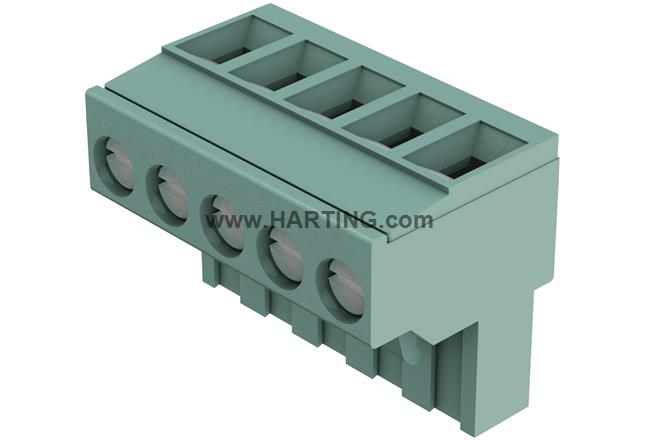

har-flexicon 5,00 FSH-8 GN

Cena za ks

Series: har-flexicon®

Element: Connector

Termination method: Screw termination

Connection type: PCB to cable

Number of contacts: 8

Contact rows: 1

Contact spacing (termination side): 5 mm

Rated current: ‌ 15 A

Rated current 2: ‌ 15 A

Limiting temperature: '-40 ... +110 °C

Isolation group: I (600 ≤ CTI)

Material (insert): Polyamide (PA) / Polyphthalamide (PPA)

Colour (insert): Green

Material (contacts): Copper alloy

Surface (contacts): Sn Mating side

Material flammability class acc. to UL 94: V-0

RoHS: compliant with exemption

ELV status: compliant with exemption

China RoHS: 50

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Yes

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead

UL / CSA: UL 1059 XCFR2.E314677 / CSA-C22.2 No. 158-10 XCFR8.E314677

Packaging size: 100

Net weight: 14.07 g

Country of origin: Italy

European customs tariff number: 85366990

GTIN: 5713140115392

eCl@ss: 27460201 PCB connector (board connector)
