Katalogové číslo: 14311314401000

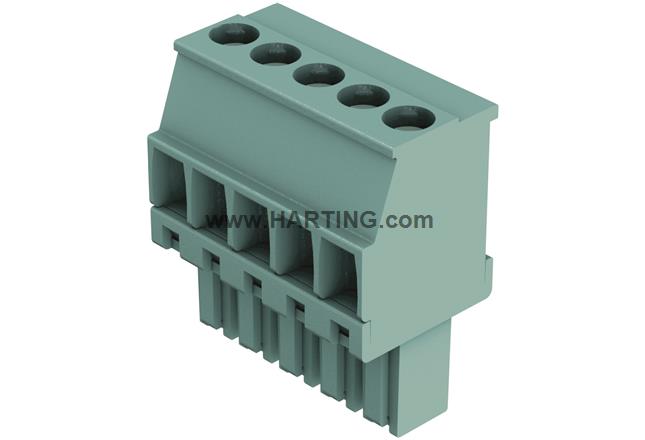

har-flexicon 3,50 FSV-13 GN

Cena za ks

130,10  bez DPH

Parametry produktu 14311314401000:

Series: har-flexicon®
Element: Connector
Termination method: Screw termination
Connection type: PCB to cable
Number of contacts: 13
Contact rows: 1
Contact spacing (termination side): 3.5 mm
Rated current: ‌ 10 A
Rated current 2: ‌ 10 A
Limiting temperature: '-40 ... +110 °C
Isolation group: I (600 ≤ CTI)
Material (insert): Polyamide (PA) / Polyphthalamide (PPA)
Colour (insert): Green
Material (contacts): Copper alloy
Surface (contacts): Sn Mating side
Material flammability class acc. to UL 94: V-0
RoHS: compliant with exemption
ELV status: compliant with exemption
China RoHS: 50
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Yes
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Lead
UL / CSA: UL 1059 XCFR2.E314677 / CSA-C22.2 No. 158-10 XCFR8.E314677
Packaging size: 50
Net weight: 0.1 g
Country of origin: Italy
European customs tariff number: 85366990
GTIN: 5713140208827
eCl@ss: 27460201 PCB connector (board connector)

Objednávka produktu 14311314401000
