Katalogové číslo: 14311615102000

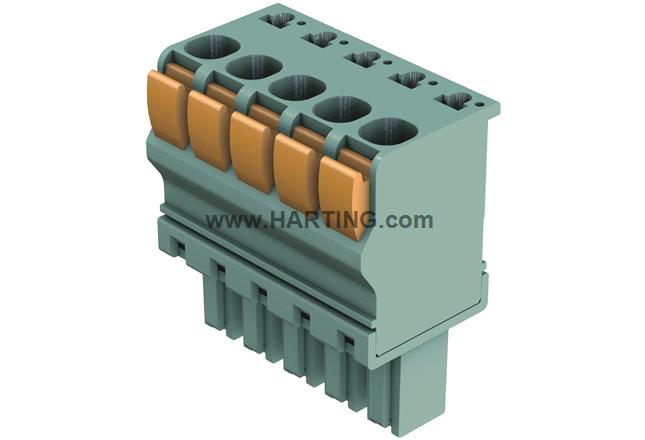

har-flexicon 3,81 FPH-16 GN

Cena za ks

207,20  bez DPH

Parametry produktu 14311615102000:

Series: har-flexicon®
Element: Connector
Termination method: Push-in-spring-cage termination
Connection type: PCB to cable
Number of contacts: 16
Contact rows: 1
Contact spacing (termination side): 3.81 mm
Rated current: ‌ 11 A
Rated current 2: ‌ 11 A
Limiting temperature: '-40 ... +110 °C
Isolation group: I (600 ≤ CTI)
Material (insert): Polyamide (PA) / Polyphthalamide (PPA)
Colour (insert): Green
Material (contacts): Copper alloy
Surface (contacts): Sn Mating side
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
UL / CSA: UL 1059 XCFR2.E314677 / CSA-C22.2 No. 158-10 XCFR8.E314677
Packaging size: 50
Net weight: 13.94 g
Country of origin: Italy
European customs tariff number: 85366990
GTIN: 5713140115859
eCl@ss: 27460201 PCB connector (board connector)
