Katalogové číslo: 15290502502000

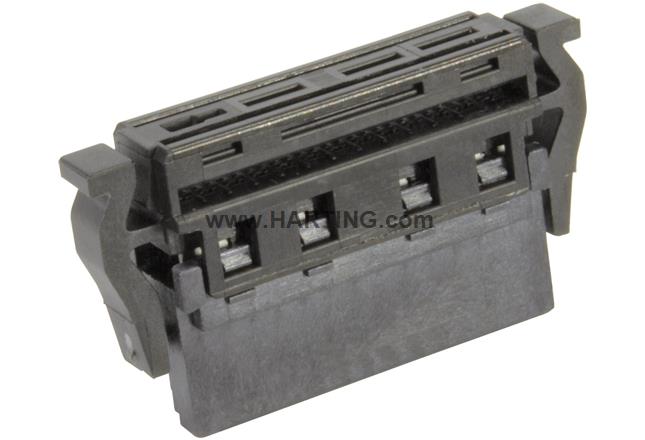

har-flex IDC fem w/st-rel 50pos PL1

Cena za ks

Series: har-flex®

Element: Female connector

Description of the contact: Straight

Termination method: IDC insulation displacement termination

Connection type: PCB to cable

Number of contacts: 50

Contact rows: 2

Contact spacing (termination side): 0.635 mm

Contact spacing (mating side): 1.27 mm

Clearance distance: ≥0.35 mm for solid wires / ≥0.4 mm for stranded wires

Creepage distance: ≥0.35 mm for solid wires / ≥0.4 mm for stranded wires

Insulation resistance: _109 Ω

Contact resistance: _109 Ω

Limiting temperature: '-55 ... +125 °C

Insertion and withdrawal force: ≈ 25 N

Performance level: 1

Mating cycles: ≥ 500

Test voltage Ur.m.s.: 0.5 kV

Isolation group: IIIa (175 ≤ CTI _ 400)

Material (insert): Liquid crystal polymer (LCP)

Material (contacts): Copper alloy

Surface (contacts): Noble metal over Ni Mating side / Sn over Ni Termination side

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Not contained

UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079

Packaging size: 75

Net weight: 5 g

Country of origin: China

European customs tariff number: 85366990

GTIN: 5713140119451

eCl@ss: 27460201 PCB connector (board connector)
