15550122601333 - SVK Elektronik, s.r.o.

Katalogové číslo: 15550122601333

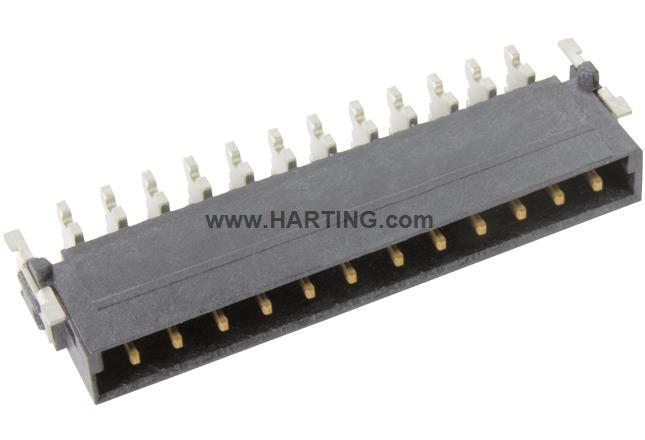

har-flex Power M ang 12P SMT PL1 Sample

Cena za ks
MOQ = 1 ks

Series: har-flex®

Element: Male connector

Description of the contact: Angled

Termination method: Reflow soldering termination (SMT)

Connection type: Motherboard to daughtercard / Extender card

Number of contacts: 12

Contact spacing (termination side): 2.54 mm

Contact spacing (mating side): 2.54 mm

Rated current: ‌ 18 A

Rated current 2: ‌ 18 A

Clearance distance: ≥1.74 mm

Creepage distance: ≥1.74 mm PCB / ≥1.89 mm Connector

Insulation resistance: _1010 Ω

Contact resistance: _1010 Ω

Limiting temperature: '-55 ... +125 °C

Performance level: 1

Mating cycles: ≥ 500

Test voltage Ur.m.s.: 1.39 kV

Isolation group: IIIa (175 ≤ CTI _ 400)

Material (insert): Liquid crystal polymer (LCP)

Colour (insert): Black

Material (contacts): Copper alloy

Surface (contacts): Noble metal over Ni Mating side / Sn over Ni Termination side

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Not contained

Packaging size: 1

Country of origin: China

European customs tariff number: 85366990

GTIN: 5713140203976

eCl@ss: 27460201 PCB connector (board connector)
