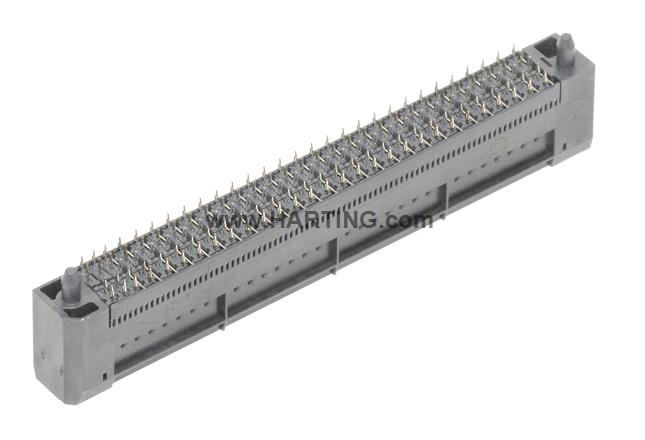

16111705207000
Kód: 16111705207000
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | AdvancedMC™ |
| Element: | Connector |
| Termination method: | Press-in termination |
| Connection type: | Motherboard to daughtercard |
| Number of contacts: | 170 |
| Contact spacing (termination side): | 0.75 mm |
| Rated current: | 2.3 A |
| Rated current 2: | 2.3 A |
| Clearance distance: | ≥ 0.1 mm |
| Creepage distance: | ≥ 0.1 mm |
| Insulation resistance: | _107 Ω |
| Contact resistance: | _107 Ω |
| Limiting temperature: | '-55 ... +105 °C |
| Mating cycles: | ≥ 200 |
| Test voltage Ur.m.s.: | 0.08 kV |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | Black |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Sn over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Nickel / Naphthalene |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 20 |
| Net weight: | 9.95 g |
| Country of origin: | China |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140119529 |
| eCl@ss: | 27460201 PCB connector (board connector) |
