Katalogové číslo: 17011541604

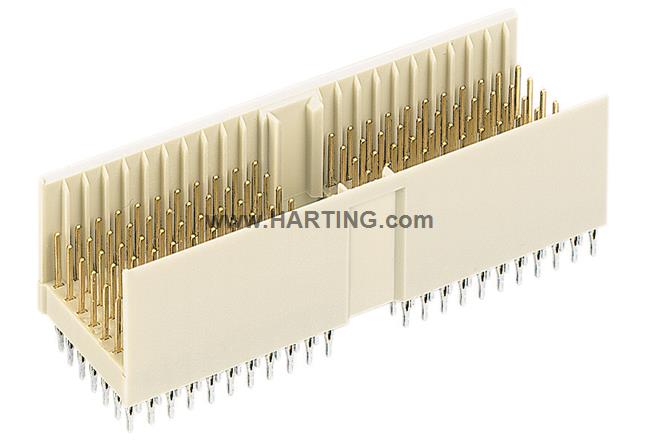

har-bus HM Mel. Typ A, AFS 1, Tube

Cena za ks

Series: har-bus® HM

Element: Male connector

Description of the contact: Straight

Termination method: Press-in termination

Connection type: Motherboard to daughtercard

Number of contacts: 154

Contact configuration: T _ S _ S _ S _ S _ S _ T

Contact rows: 7

Contact spacing (termination side): 2 mm

Contact spacing (mating side): 2 mm

Rated current: ‌ 1 A

Rated current 2: ‌ 1 A

Insulation resistance: _109 Ω

Contact resistance: _109 Ω

Limiting temperature: '-55 ... +125 °C

Performance level: 1

Test voltage Ur.m.s.: 0.75 kV

Isolation group: IIIa (175 ≤ CTI _ 400)

Material (insert): Thermoplastic resin, glass-fibre filled

Colour (insert): Beige

Material (contacts): Copper alloy

Surface (contacts): Noble metal over Ni Mating side / Ni Termination side

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Nickel

UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079

Packaging size: 10

Net weight: 17.165 g

Country of origin: Germany

European customs tariff number: 85366990

GTIN: 5713140120044

eCl@ss: 27460201 PCB connector (board connector)
