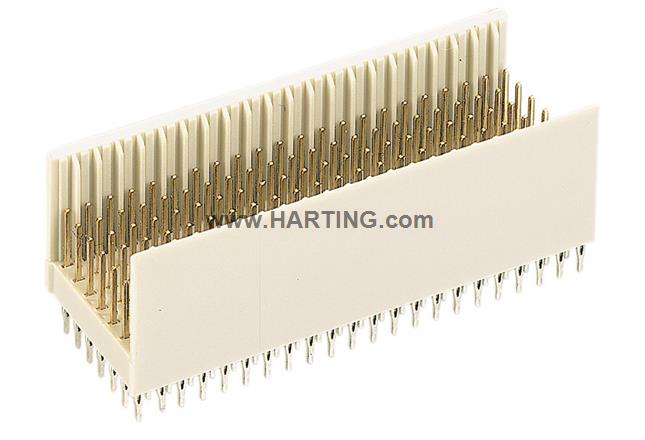

17041102201
Kód: 17041102201
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | har-bus® HM |
| Element: | Male connector |
| Description of the contact: | Straight |
| Termination method: | Press-in termination |
| Connection type: | Motherboard to daughtercard |
| Number of contacts: | 110 |
| Contact configuration: | '- _ AK _ AK _ AK _ AK _ AK _ CT |
| Contact rows: | 7 |
| Contact spacing (termination side): | 2 mm |
| Contact spacing (mating side): | 2 mm |
| Rated current: | 1 A |
| Rated current 2: | 1 A |
| Insulation resistance: | _109 Ω |
| Contact resistance: | _109 Ω |
| Limiting temperature: | '-55 ... +125 °C |
| Performance level: | 2 |
| Test voltage Ur.m.s.: | 0.75 kV |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Material (insert): | Thermoplastic resin, glass-fibre filled |
| Colour (insert): | Beige |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Nickel |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 11 |
| Net weight: | 10 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140120709 |
| eCl@ss: | 27460201 PCB connector (board connector) |
