21033112811 - SVK Elektronik, s.r.o.

Katalogové číslo: 21033112811

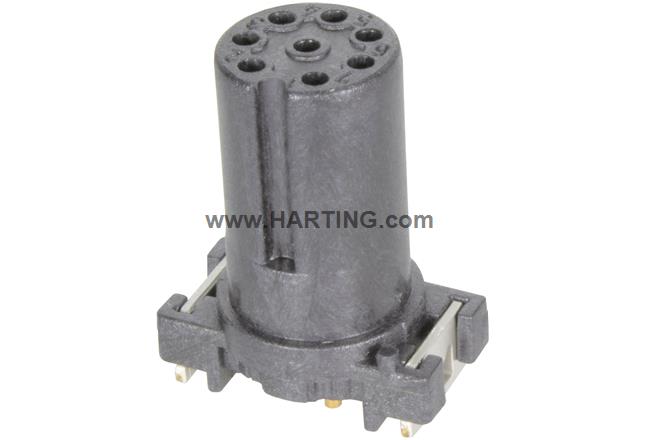

M12-PCB-SMT-2PC-8P-ACOD-F-STR(75)

Cena za role
MOQ = 1 role

Series: Circular connectors M12

Element: PCB adapter

Termination method: Reflow soldering termination (SMT)

Number of contacts: 8

Rated current: ‌ 2 A

Rated current 2: ‌ 2 A

Insulation resistance: _108 Ω

Contact resistance: _108 Ω

Limiting temperature: '-40 ... +85 °C

Mating cycles: ≥ 100

Isolation group: I (600 ≤ CTI)

Material (insert): Liquid crystal polymer (LCP)

Material (contacts): Copper alloy

Surface (contacts): Au over Ni Mating side

Material flammability class acc. to UL 94: V-0

RoHS: compliant with exemption

ELV status: compliant with exemption

China RoHS: 50

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Yes

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead

Specifications: IEC 61076-2-101

Packaging size: 1

Net weight: 660 g

Country of origin: Germany

European customs tariff number: 85366990

GTIN: 5713140228757

eCl@ss: 27460201 PCB connector (board connector)
