27111618001
Kód: 27111618001
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | har-link® |

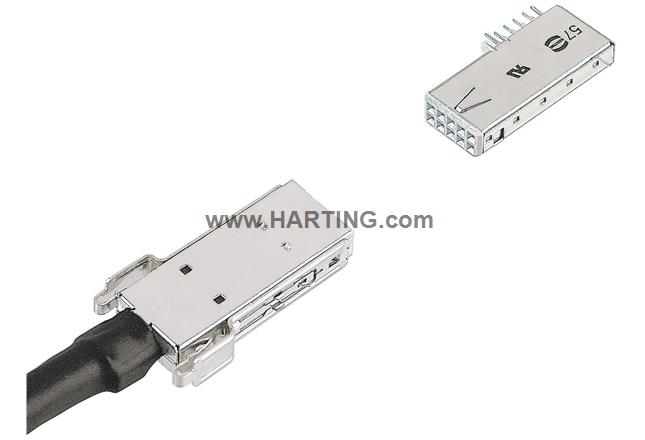

| Element: | Male connector |
| Termination method: | IDC insulation displacement termination |
| Number of contacts: | 10 |
| Contact rows: | 2 |
| Contact spacing (termination side): | 2 mm |
| Contact spacing (mating side): | 2 mm |
| Rated current: | 1.5 A |
| Rated current 2: | 1.5 A |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | _1010 Ω |
| Limiting temperature: | '-55 ... +125 °C |
| Performance level: | 2 |
| Mating cycles: | ≥ 250 |
| Test voltage Ur.m.s.: | 0.75 kV |
| Material (insert): | Polyester |
| Colour (insert): | Black |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Au over Ni Mating side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Antimony trioxide / Nickel |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 20 |
| Net weight: | 4 g |
| Country of origin: | Switzerland |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140148918 |
| eCl@ss: | 27440205 Contact insert for industrial connectors |
