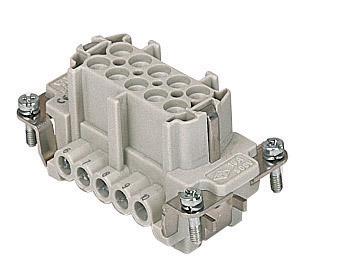

CNEF 10 T - SVK Elektronik, s.r.o.

Katalogové číslo: CNEF 10 T

FEMALE INSERT 16A 10P+TOP

Cena za KS
MOQ = 1 KS

Cenovou nabídku k tomuto produktu vám zašleme po obdržení objednávky. Pro objednání stačí vložit produkt do košíku a dokončit objednávku.

Cena na dotaz

Parametry produktu CNEF 10 T:

Product type: Insert

Series: CNE

Size: size / 57.27 /

Specification: With plate, also for non-prepared conductors

IP degree of protection: IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure

Weight: 62,50 g

Operating temperature range (min, max): '-40 °C ... +125 °C

Main material: Polycarbonate (PC)

Other materials: Contacts / copper alloy

Colour: RAL 7032 grey

SCIP number: 1a9c93ff-0445-4a16-81e3-1609ac5274d6

EAN13 code: 8015747032193

Packaging lenght: 210,00 mm

Packaging height: 75,00 mm

Packaging width: 180,00 mm

Packaging weight: 2,14 kg

Packaging volume: 2,84 dm³

Packaging description: Carton box

Packaging quantity: 30 Pcs

Packaging EAN code: 8015747032209

Sub-packaging description: Carton tray

Sub-packaging EAN barcode: 8015747032216

Sub-packaging quantity: 5 Pcs

Sub-packaging weight: 0,36 kg

Sub-packaging height: 36,00 mm

Sub-packaging lenght: 67,00 mm

Sub-packaging volume: 0,43 dm³

Sub-packaging width: 180,00 mm

China RoHs - EFUP: 50

Connection type: screw terminal connection

Contact resistance: ≤ 1 mΩ

eCl@ss 8.1: 27440205

ETIM 7.0: EC000438

Gender: Female

Insulation resistance: ≥ 10 GΩ

Mating cycles: ≥ 500

REACH SVHC substances: YesLead

RoHs conformity: Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight

UL 94 flammability rating: V-0

Certifications: CSA, CQC, DNV, BV, EAC

cUL: ECBT8, PVVA8

UL: ECBT2, PVVA2

AWG size: / 20 / - / 12 /

Conductors stripping lenght: 7 mm

Contact type: turned silver plated

Current: / 16 A /

Wire cross-section: / 0,50 mm² / - / 4,00 mm² /

Characteristics according to EN 61984: 16A 500V 6kV 3; 16A 400 / 690V 6kV 2

N. of poles: 10 poles +

Pollution degree: 3

Rated impulse withstand voltage: 6 kV

Rated voltage according to UL/CSA: 600 V

Reference standard: EN 61984 / 2009-06

Tightening torque for fixing screws: M3 / 0.5 Nm; 4.4 lb.in (0.5x3 mm)

Tightening torque for PE connection: M3 / 0,5 Nm; 4,4 lb,in (0,5x3mm )

Torque for main contact: M3 / 0,5 Nm; 4,4 lb.in (Ph0 or 0,8 x 4 mm)

Voltage: / 500 / V /
