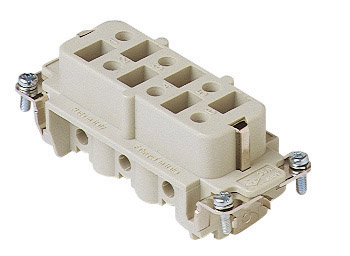

CPF 06 X - SVK Elektronik, s.r.o.

Katalogové číslo: CPF 06 X

FEMALE INSERT 6P. NO WP

Cena za KS
MOQ = 1 KS

Cenovou nabídku k tomuto produktu vám zašleme po obdržení objednávky. Pro objednání stačí vložit produkt do košíku a dokončit objednávku.

Cena na dotaz

Parametry produktu CPF 06 X:

Product type: Insert

Series: CP

Size: size / 77.27 /

Specification: Without plate, for prepared conductors

IP degree of protection: IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure

Weight: 110,00 g

Operating temperature range (min, max): '-40 °C ... +125 °C

Main material: Polycarbonate (PC)

Other materials: Contacts / copper alloy

Colour: RAL 7032 grey

SCIP number: 1a9c93ff-0445-4a16-81e3-1609ac5274d6

EAN13 code: 8015747213417

Packaging lenght: 230,00 mm

Packaging height: 110,00 mm

Packaging width: 180,00 mm

Packaging weight: 2,34 kg

Packaging volume: 4,55 dm³

Packaging description: Carton box

Packaging quantity: 20 Pcs

Packaging EAN code: 8015747213431

Sub-packaging description: Carton tray

Sub-packaging EAN barcode: 8015747213448

Sub-packaging quantity: 5 Pcs

Sub-packaging weight: 0,59 kg

Sub-packaging height: 36,00 mm

Sub-packaging lenght: 87,00 mm

Sub-packaging volume: 0,56 dm³

Sub-packaging width: 180,00 mm

China RoHs - EFUP: 50

Connection type: screw terminal connection

Contact resistance: ≤ 0,5 mΩ

Gender: Female

Insulation resistance: ≥ 10 GΩ

Mating cycles: ≥ 500

REACH SVHC substances: YesLead

RoHs conformity: Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight

UL 94 flammability rating: V-0

Certifications: CSA, CQC, DNV, BV, EAC

UL: ECBT2

AWG size: / 18 / - / 10 /

Contact type: turned silver plated

Current: / 35 A /

Wire cross-section: / 0,75 mm² / - / 6,00 mm² /

N. of poles: 6 poles +

Pollution degree: 3

Rated impulse withstand voltage: 6 kV

Rated voltage according to UL/CSA: 600 V

Reference standard: EN 61984 / 2009-06

Torque for main contact: M4 / 1,2 Nm; 10,6 lb.in (Ph1 or 0,8 x 4 mm)

Voltage: / 400 / - / 690 / V /
